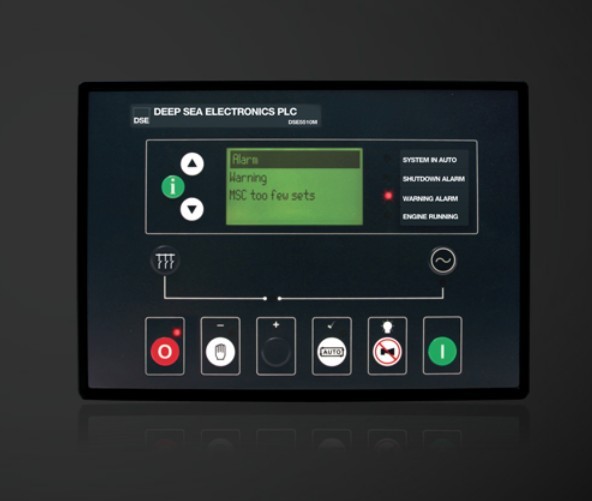

DSE5510M Auto Start Load Share controller (Marine)
The
DSE5510M is an Automatic Engine ControlModule, designed to provide
advanced load share functionality for diesel and gas generating sets
that include nonelectronic and electronic engines.The module also
provides excellent engine monitoring and protection features.
The
modules load share functions include, automatic synchronising with built
in synchroscope and closing onto dead bus. Direct and flexible outputs
from the module are providedto allow connection to the most commonly
used speed governors and automatic voltage regulators (AVRs).
The
module has been designed to combine a maximum of 16 generators and
16mains (utility)supplies up to a maximum of 20 in one system, e.g. 16
generators and 4mains (utility) supplies (DSE5560 required to
synchronise with the mains).
Key features
• Electronic engine capability
• RS232 or RS485 remote communications
• Modbus RTU
• Pin number protected front panel
programming
• Engine exercise timer
• Back-lit LCD 4-line text display
• Multiple display languages
• Voltage measurement
• Configurable inputs (9)
• Configurable outputs (5)
• Automatic start
• Manual start
• Audible alarm
• LED indicators
• Built-in governor and AVR control
• Engine history event log
• Engine protection
• Fault condition notification to a
designated PC
• Front panel mounting
• PC configuration
• Bus failure detection
• Configurable alarm timers
• Configurable start & stop timers
• Automatic load transfer
• SMS alert messaging
• Front panel mounting
• Remote monitoring
Key load share features
• ROCOF & vector shift
• Automatic starting & stopping of generator on load demand
• Automatic hours run balancing of generator sets
• Dead bus sensing
• Module has the ability to interface with existing load share lines
• Direct communication from the module to the governor and AVR
• Link up to 16 generators
• Volts & frequency matching
• KW and Kvar load sharing with multiple generators
Benefits
• Sends SMS messages to engineers to notify specific engine problems (GSM Modem and SIM card required)
• On-site and remote module configuration
• In-built engine diagnostics removes the requirement for service equipment
• Full engine protection &instrumentation without the need for additional senders (Electronic engines only)
• Remote monitoring of the module using comprehensive DSE PC software
• License free PC software
