Cummins magnetic pickup(MPU) 3034572

Product Name : Cummins magnetic pickup(MPU) 3034572

Product ID : 3034572

MOQ : 1pc

Packaging : Individual packing or neutral packing

Delivery time : 3~5 working days

Payment terms : T/T,West Union,Paypal

Supply ability : 3000pcs/month

Introduction

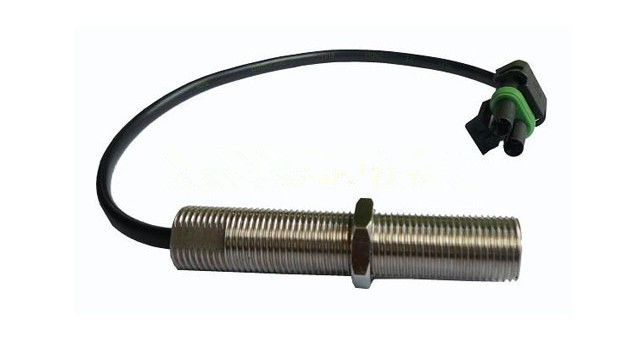

Magnetic pickup(speed sensor/ MPU) 3034572
Parameter:
Measure range: 50-5000Hz
Inductance: 142MH+25%
Thread Size: 5/8-18 UNF-2A
Tap Drill Size: 37/64 inch
Proximity to Gear Teeth: .028 in min. - .042 in max.(Approximately 1/2 to 3/4 turn)
Temperature Range: -55 deg C to 105 deg C
Output at Cranking Speed: 1.5 volts AC minimum
Maximum Output: 30 volts AC
Coil Resistance: 300 ohms maximum
