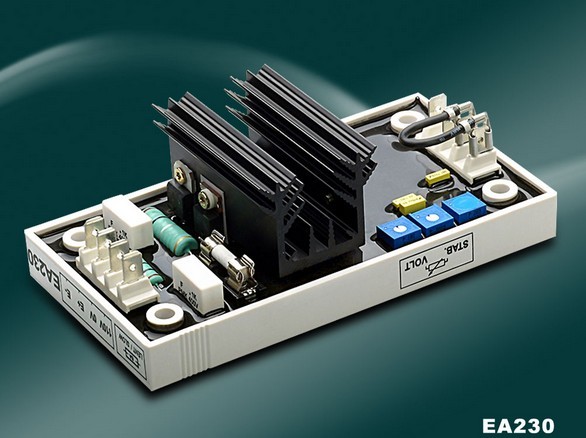

KUTAI AVR EA230,EA230 Automatic Voltage Regulator
EA230 Automatic Voltage Regulator 100 VDC 8 Amp
EA230 8 Amp self excited brushless type genset voltage regulator is an universal AVR and compatible replacement for Leroy Somer R230, R250, R230B, AEM110RE014, Olympian FG Wilson 922 197.
Features
Voltage Regulation < ±1%
Economical Compact Design
For use in 50/60 Hz Brushless Generators
EMI Suppression
Under Frequency Protection
Over Excitation Current Shutdown
120 VAC Optional
Specifications
Input | Voltage120(90~140)VAC1phase2wire |
Frequency45~65Hz | |
Output | VoltageMax.100VDC@120VACinput |
CurrentContinuous8A,Intermittent10Afor10Sec. | |
ResistanceMin.15Ohm | |
VoltageRegulation | <±1%(with4%enginegoverning) |
VoltageBuild-up | ResidualvoltsatAVRterminal>5VAC |
ExternalVoltsAdjustment | ±5%with5KOhm1/2watttrimmer |
UnitPowerDissipation | Max.6watt |
ThermalDrift | 0.03%per°CchangeinAVRambient |
EMISuppression | Internalelectromagneticinterferencefiltering |
UnderFrequencyProtection | Kneepoint47/57Hz(Adjustable) |
Environment | OperatingTemperature:-40~60°C |
StorageTemperature:-40~85°C | |
RelativeHumidity:Maximum95% | |
Vibration:1.5G@5~30Hz/5.0G@30~500Hz | |
AVRControlsFunctions | VOLT:VoltageAdjustment |
STAB:StabilityAdjustment | |
U/F*:ToSettheU/FKneePoint | |
(*U/F:UnderFrequencyProtection) | |
Shock | Withstandsupto20GineachX,Y,Zaxes |
Dimensions | 140.0(L)x75.0(W)x51.0(H)mm |
Weight | 310g±2% |
